- Hign-concerned Chemical: None
- Output Shaft: 10mm
- Speed Ratio: 40:1
- Output Speed: according to different gear
- Input Speed: 100rpm
- Rated Power: 60w
- Output Torque: 4.65 N.m
- Model Number: 4GN120K
- Gearing Arrangement: SPUR
- Origin: Mainland China
- Certification: None
- Flange Size: 80mm
Welcome to Curitis Automation Industry Co.,Ltd !
We promise to offer the best quality, competitive price,good communication, fast shipment and nice service.
Zd Reducer Dc Gear Motor Induction Motor Specially Equipped With Gear Box 4gn120k Gearbox
Other gear ratio available for this model:3:1, 5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1,45:1,50:1, 60:1, 70:1,80:1, 90:1, 100:1, 120:1, 140:1, 160:1,180:1, 200:1
Flange size is 80mmx80mm
1. It’s only the typical data.
The gear motor can be customized if you have some special requirements such as the gear ratio, torque and shaft dimension.
The motor price is also for reference only and it will be decided by the reduction ratio and body’s length.
2. In addition, when you choose your products, we can discuss abt the shipping fees, not as the Aliexpress, maybe we have some discount if you place a huge order.
3. You can place an order when you make your decision, but do not pay until you contact with us. Because there may be some discounts abt the products you need.
We accept payment from TT and Westernunion and paypal!
Pls send us your needed gear ratio leave message.
They are easy for installation and maintenance.
Pls send us your needed voltage and gear ratio leave message.

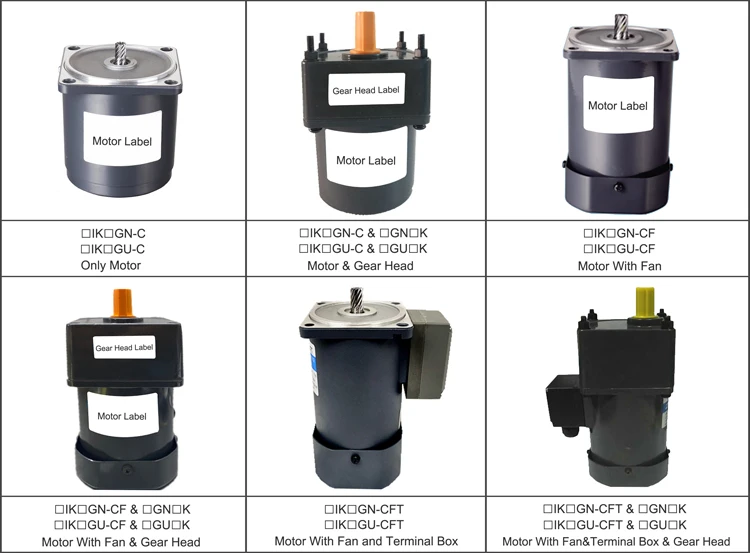

Special Notifications about the motors:
1. If you choose 5IK120GU-CF, you can only get the motor(With Fan).
2. If you choose 5IK120GU-CF 5GU□K, you will get the motor (With Fan) and the gear head.
3. If you choose 5IK1200GU-CFT 5GU□K, you will get the motor (With Terminal Box and Fan) and the gear head.
4. If you only need the gear head, please contact me.
Note:
•Change the direction of single-phase motor rotation only after bring the motor to a stop.
•If an attempt is madeto change the direction of rotation while the motor is rotating,motor may ignore reversing or change its direction of rotation after some depaly.
● Special Declaration:
• Please read carefully about the descriptions of the products and if any questions, contact sales immediately. For products that sold out, if it is not quality problem, can not return the goods and money.
• Please check carefully about the packing and open to check if products are good. If package is broken or there is problems of the products, don’t sign in.
• Please contact sales for more information and confirm about details about products. And in case of potential problems.
We can design according to clients’ requirements.
Feedback :
we wish you are satisfied with your purchase.
Of course,when you have some questions or ploberms about our products or services,please let us know ,we will do our best to settle it.
How about other ac motor styles can production ?
|
MOTOR FRAME SIZE
|
60 mm / 70mm / 80mm / 90mm / 104mm
|
|||
|
MOTOR TYPE
|
INDUCTION MOTOR / REVERSIBLE MOTOR / TORQUE MOTOR / SPEED CONTROL MOTOR
|
|||
|
OUTPUT POWER
|
6W / 10W / 15W / 25W / 40W / 60W / 90W / 120 W / 140W / 180W / 200W(can be customized)
|
|||
|
OUTPUT SHAFT
|
8mm / 10mm / 12mm / 15mm ; round shaft, D-cut shaft, key way shaft
(can be customized)
|
|||
|
Voltage type
|
Single phase 100-120V
50/60Hz 4P
|
Single phase 200-240V 50/60Hz 4P
|
||
|
Three phase 200-240V
50/60Hz 4P
|
Three phase 380-415V 50/60Hz 4P
|
|||
|
Three phase 440-480V
60Hz 4P
|
Three phase 200-240/380-415/
440-480V 50/60/60Hz 4P
|
|||
|
Accessories
|
Terminal box type / with Fan / thermal protector / electromagnetic brake
|
|||
|
Above 60 W, all assembly with fan
|
||||
|
GEARBOX FRAME SIZE
|
60 mm / 70mm / 80mm / 90mm / 104mm
|
|||
|
GEAR RATIO
|
MINIMUM 3:1—————MAXIMUM 750:1
|
|||
|
GEARBOX TYPE
|
PARALLEL SHAFT GEARBOX AND STRENGTH TYPE
|
|||
|
Right angle hollow
worm shaft
|
Right angle spiral
bevel hollow shaft
|
L type hollow shaft
|
||
|
Right angle solid
worm shaft
|
Right angle spiral
bevel solid shaft
|
L type solid shaft
|
||
AC Gear Motor
* Motor Type: Induction/Reversible/Break/Torque/Speed Control Motor
* Frame Size:60mm, 70mm, 80mm, 90mm, 104mm
* Power:6W-200W+
* Ratio Range:3-200K
* Voltage:110V/200V/220V/380V/415V 50/60Hz Single/Three-Phase
* Application:Packing Machinery, Barrier Gate System, Conveyor and ect.
How about application ?
