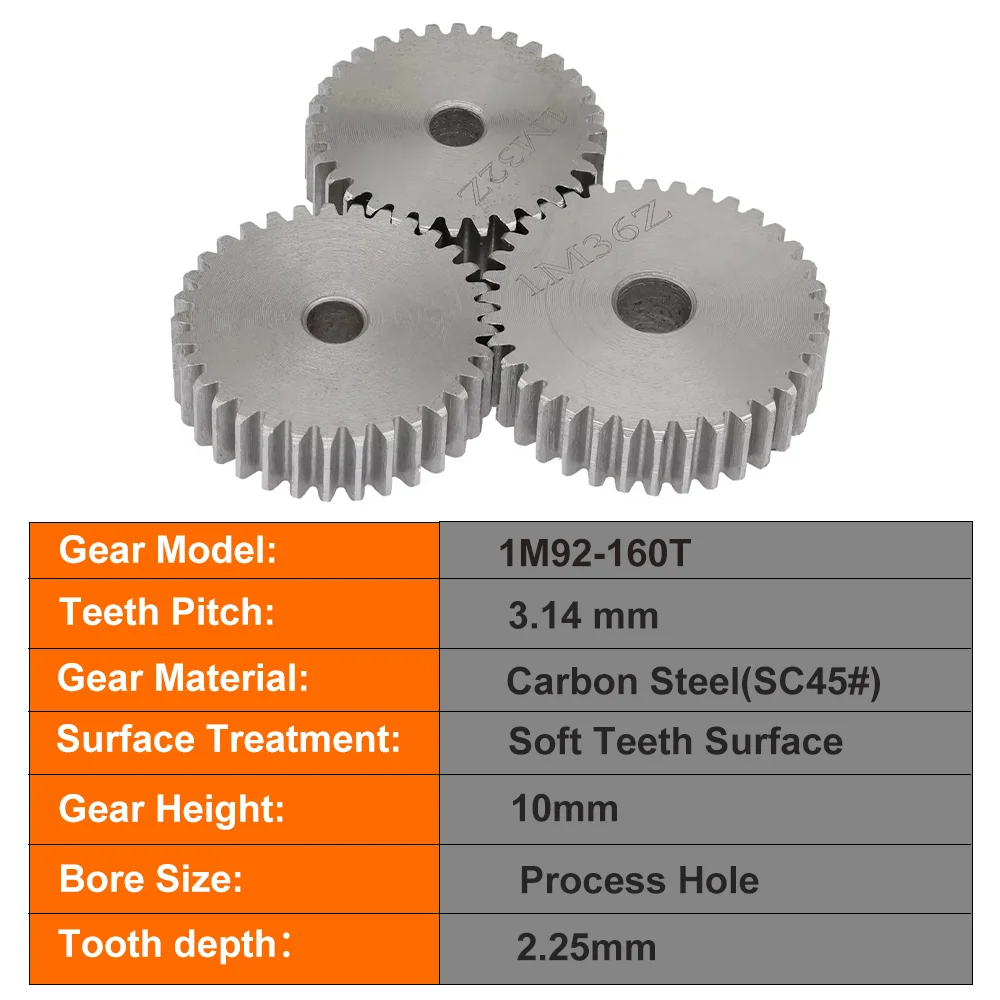

Spur Gear 1M-92T-160Teeth SC45# Carbon Steel Material Cylindrical Gear Transmission Accessories

Name: Spur Gear 1M-92T-160Teeth SC45# Carbon Steel Material Cylindrical Gear Transmission Accessories
SKU: 3256807967529820
Availability: InStock

$40.29 – $124.02

Number of Teeth

Clear

SKU: 3256807967529820 Category: Cylindrical gear

Description
Reviews (0)

Hign-concerned Chemical: None
is_customized: YES
Direction: Right Hand
Pressure Angle: 20
Standard or Nonstandard: Standard
Processing: Hobbing
Model Number: 1M-92T/94T/95T/96T/97T/98T/100T/105T/115T/120T/125T/130T/140T/150T
Shape: Cylindrical Gear
Tooth Profile: Spur Gear
Material: Carbon Steel
Origin: Mainland China

Specification:
1.Product Name:Cylindrical Gear
2.Model: 1M-92T/94T/95T/96T/97T/98T/100T/105T/115T/120T/125T/130T/140T/150T/160Teeth
3.Inner Bore :Process Hole
4.Material: SC45#(Carbon Steel)
5.Surface Treatment: Soft Teeth Surface
6.Gear Height:10 mm
7.Package Include:Gear *1 piece
Note:
The gear is a carbon steel product, and there may be rust on the surface,
but it will not affect the product efficacy and use. Please understand.
