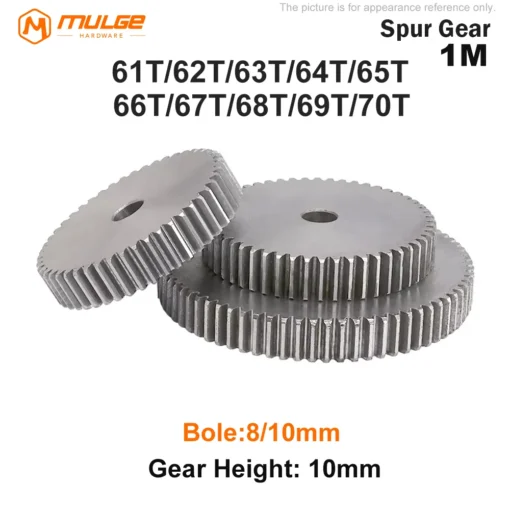

Spur Gear 1M-61T/62T/63T/64T/65T/66T/67T/68T/69T/70Teeth SC45# Carbon Steel Material Cylindrical Gear Transmission Accessories

Name: Spur Gear 1M-61T/62T/63T/64T/65T/66T/67T/68T/69T/70Teeth SC45# Carbon Steel Material Cylindrical Gear Transmission Accessories
SKU: 3256807966348551
Availability: InStock

$25.20 – $28.92

Number of Teeth

Clear

SKU: 3256807966348551 Category: Cylindrical gear

Description
Reviews (0)

Hign-concerned Chemical: None
is_customized: YES
Direction: Right Hand
Pressure Angle: 20
Standard or Nonstandard: Standard
Processing: Hobbing
Model Number: 1M-61T/62T/63T/64T/65T/66T/67T/68T/69T/70T
Shape: Cylindrical Gear
Tooth Profile: Spur Gear
Material: Carbon Steel
Origin: Mainland China

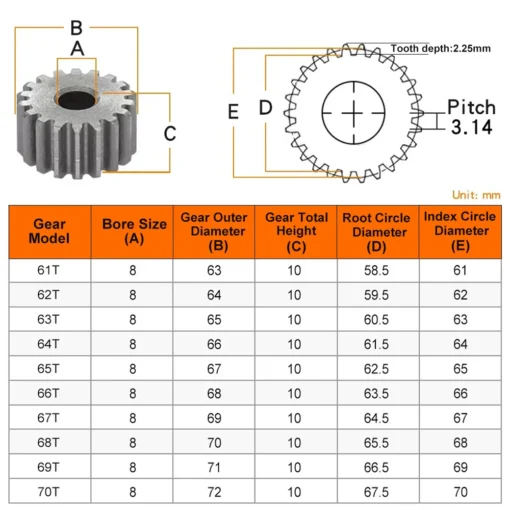

Specification:
1.Product Name:Cylindrical Gear
2.Model: 1M-61T/62T/63T/64T/65T/66T/67T/68T/69T/70Teeth
3.Inner Bore :Process Hole
4.Material: SC45#(Carbon Steel)
5.Surface Treatment: Soft Teeth Surface
6.Gear Height:10 mm
7.Package Include:Gear *1 piece
Note:
The gear is a carbon steel product, and there may be rust on the surface,
but it will not affect the product efficacy and use. Please understand.
