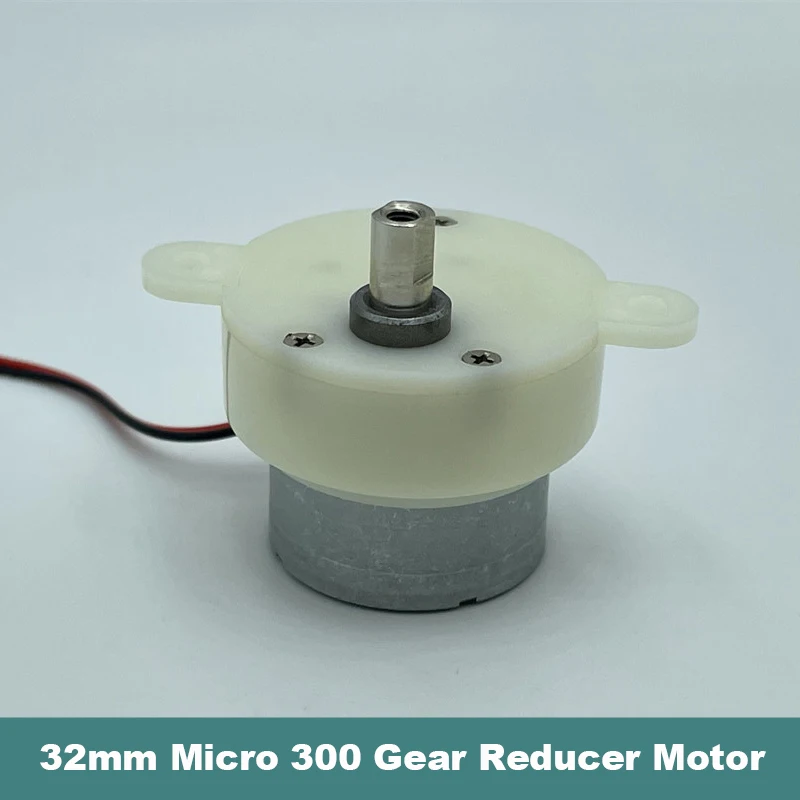

Micro 300 Gear Motor DC 3V 5V 6V 29RPM Slow Speed Mini 32mm Turbo Worm Gearbox Gear Reduction Motor DIY Stage Lights Toy Model

Specification:

1.Brand: KINGLY MOTOR

2.Model: 32L-300 Gear Motor

3.Motor diameter: 24.3mm

4.Total height: 24.5mm

5.Gearbox diameter: 32mm

6.Output shaft diameter: 5mm(D shaft 4mm)

7.Output shaft length: 9.7mm(include step height)

8.Weight: 30g

9.Voltage range: DC 3.0V-7.4V

10.Test data:

    Voltage:3.0V  Current:26mA  No-load speed:15RPM

    Voltage:3.7V  Current:28mA  No-load speed:18RPM

    Voltage:5.0V  Current:38mA  No-load speed:25RPM

    Voltage:6.0V  Current:45mA  No-load speed:29RPM

    Voltage:7.4V  Current:55mA  No-load speed:37RPM

Package List:

Gear Motor x 1pcs
