- Torque: 200kg.cm
- Usage: CAR,Home Appliance
- Model Number: MH5882-45
- Continuous Current(A): 500mA
- Construction: Permanent Magnet
- Protect Feature: Totally Enclosed
- Type: Gear Motor
- Commutation: Brush
- Efficiency: IE 1
- Output Power: 30W
- Origin: Mainland China
- Certification: ce,ROHS
Specification:
1.Rated voltage: DC 12V and DC 24V,detail voltage and current ,please look below parameter table.
2.DC 12V;24V;You can choose the no load speed have Voltage: DC12V DC24V No-load Speed:6/11/24/34/60/120/200RPM 4.it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 12V,24V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.
3.Direction of rotation of the motor: CW Or CCW, Support Reversed; Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected
4.Gear material: Metal gears make the motor last longer
5.The shaft shape of the motor : Threaded Shaft, please refer to the size chart below for all dimensions of the motor.
6.This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor. For example, Electric curtains ; Billboard motors ; Household appliances etc.
7.The motor has standard noise when working. If your project has requirements for the working noise of the motor, please consult us before purchasing. We will give you some suggestions. Thank you.

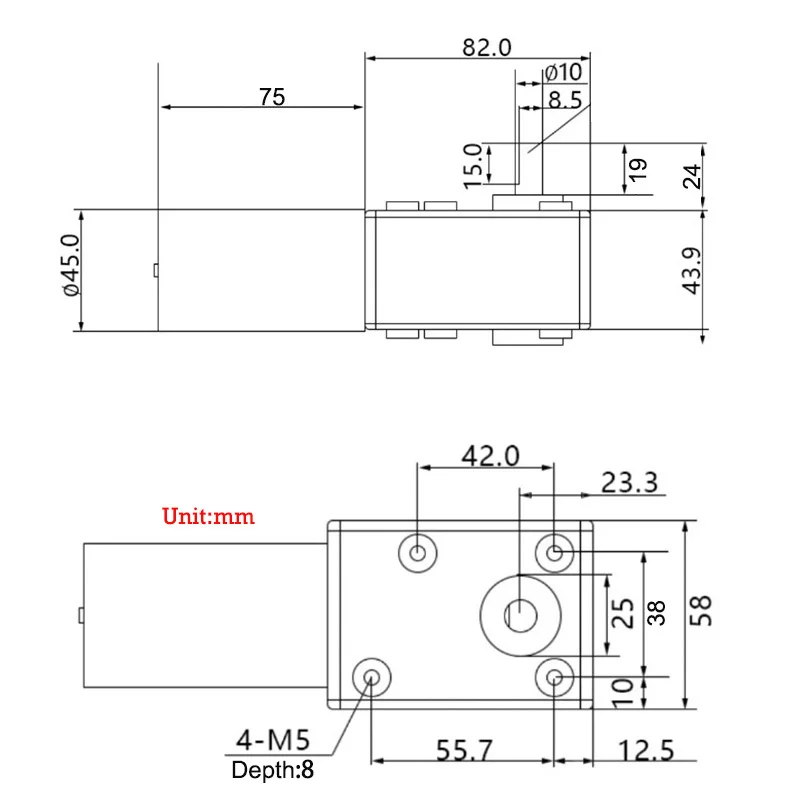

Dimensions:
Parameter:

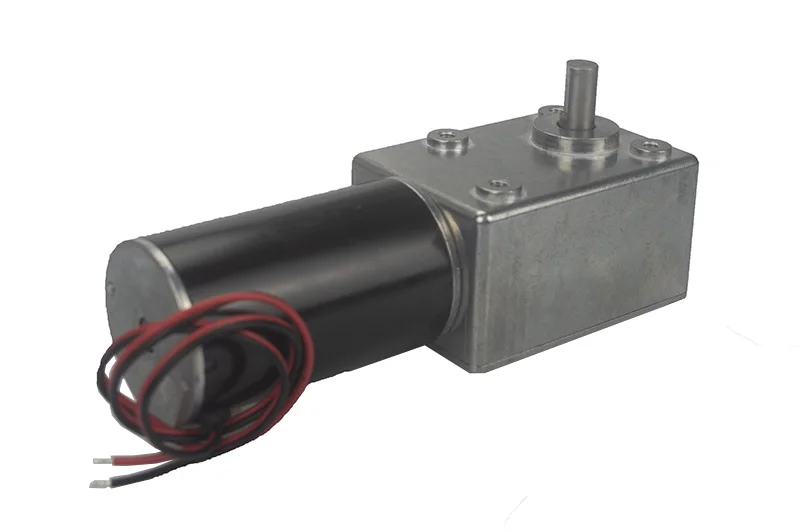

Product show:
Contact us :
Technical Support：
E-mail: wxx97@163.com
Sales Support：
Whatsapp & Wechat :+8613662588687
E-mail: wxx97@126.com
Payment:
Support follow payment mothed and local payment:
Also You can transfer to our company account.
Certifications:
Our product with CE and RoHS certifications
Product Application:
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain,
camera, medical service, oxygen machine, etc.
Delivery & Packing :
Shipping Mothed: aliexpress shipping,4PX shipping,DHL,Fedex,UPS,ocean shipping,train shipping
We provide special line shipping for Russia big order,door to door & include tax.
Standard packing

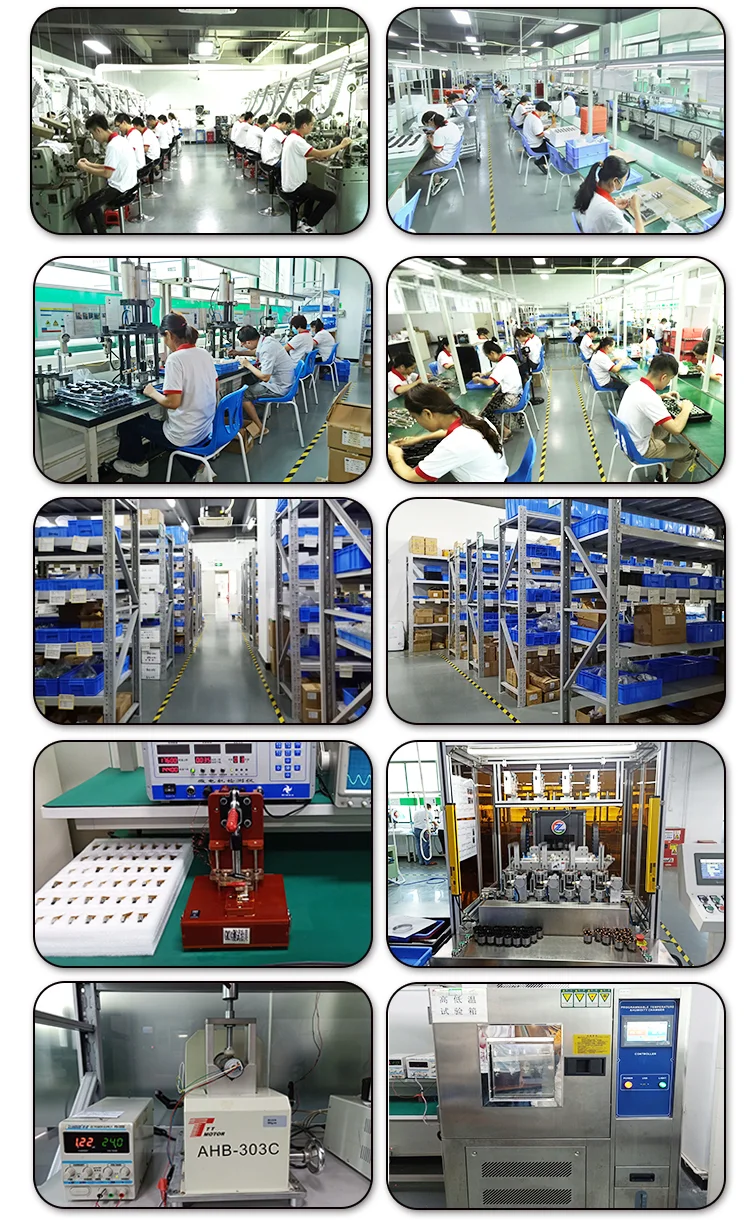

Company information:
MH Motor Industrial Co., Ltd. has been specializing in micro motors, gear motors and their respective parts since 2015.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and
many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of
our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, MH aims to continue
as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a
distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.
Feedback & Quality：
Source motor factory,we always provide good quality and good price motors,if you have any problem,please contact
us first. we wil provide good service for you. thanks.
