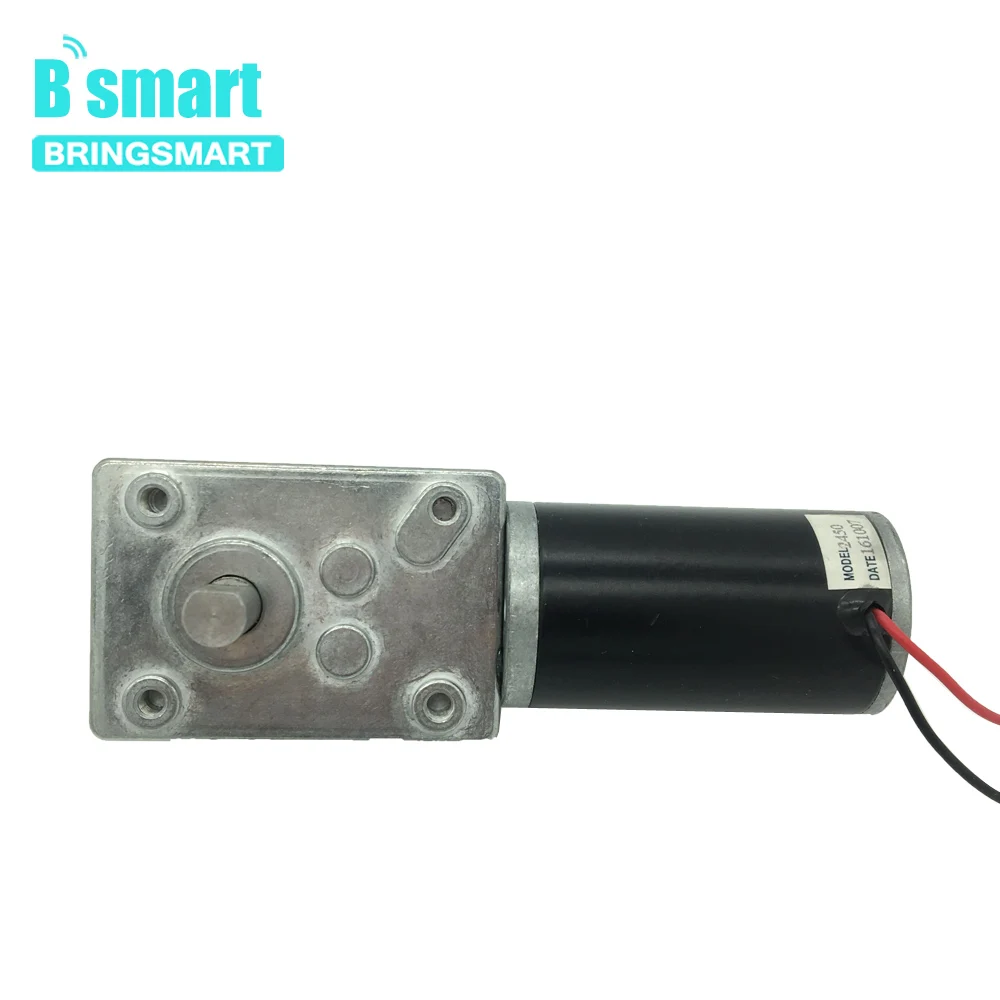

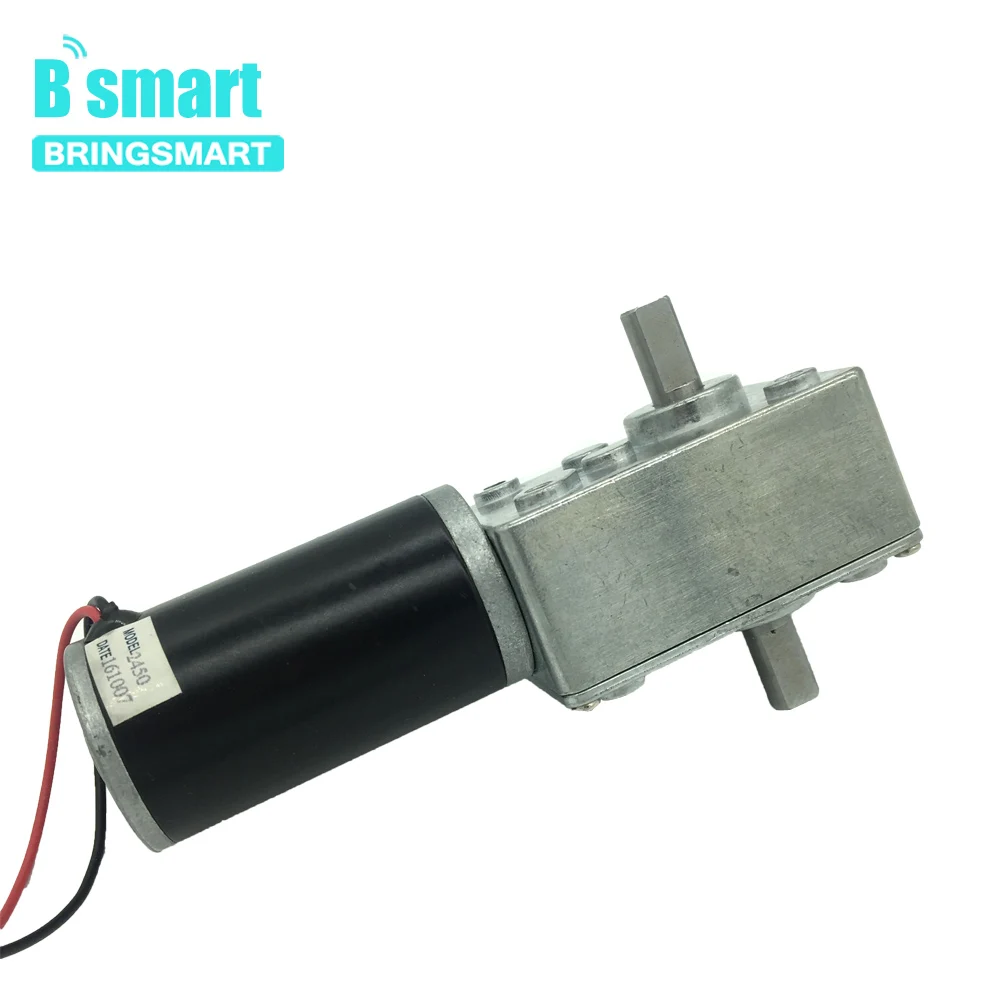

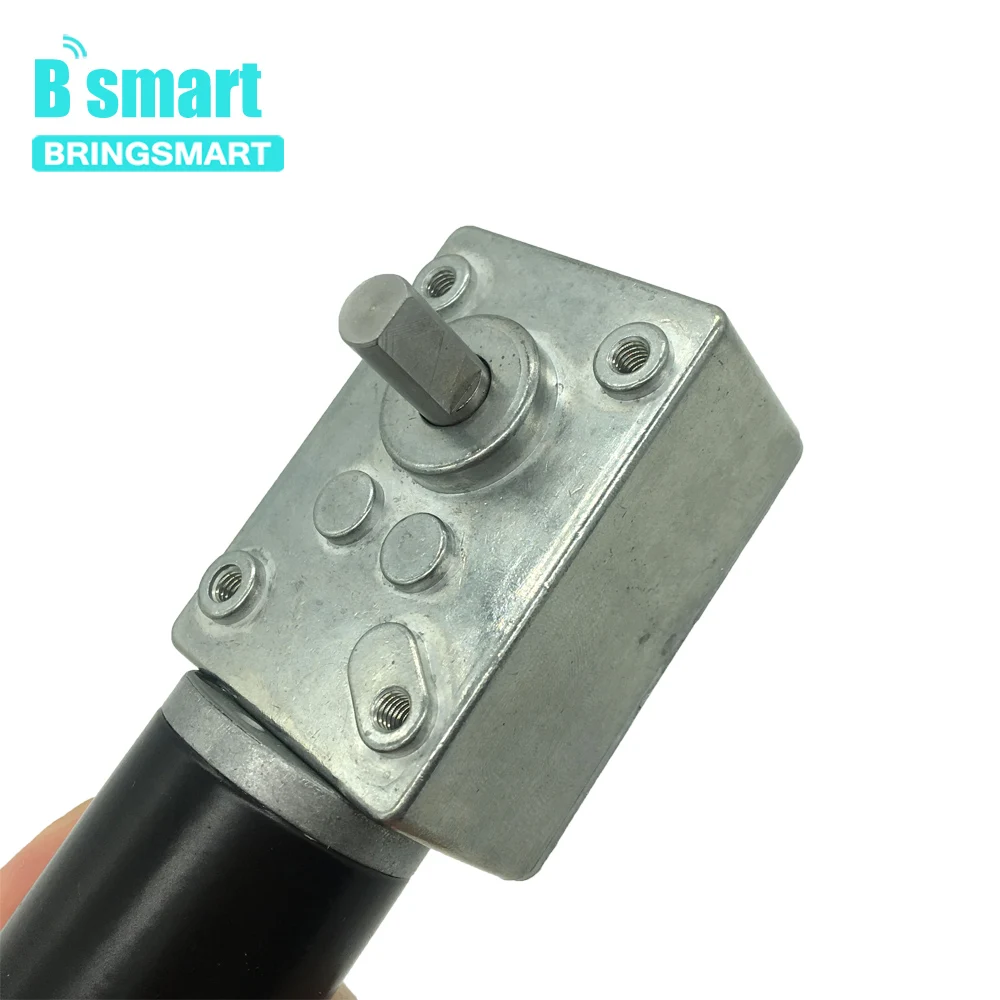

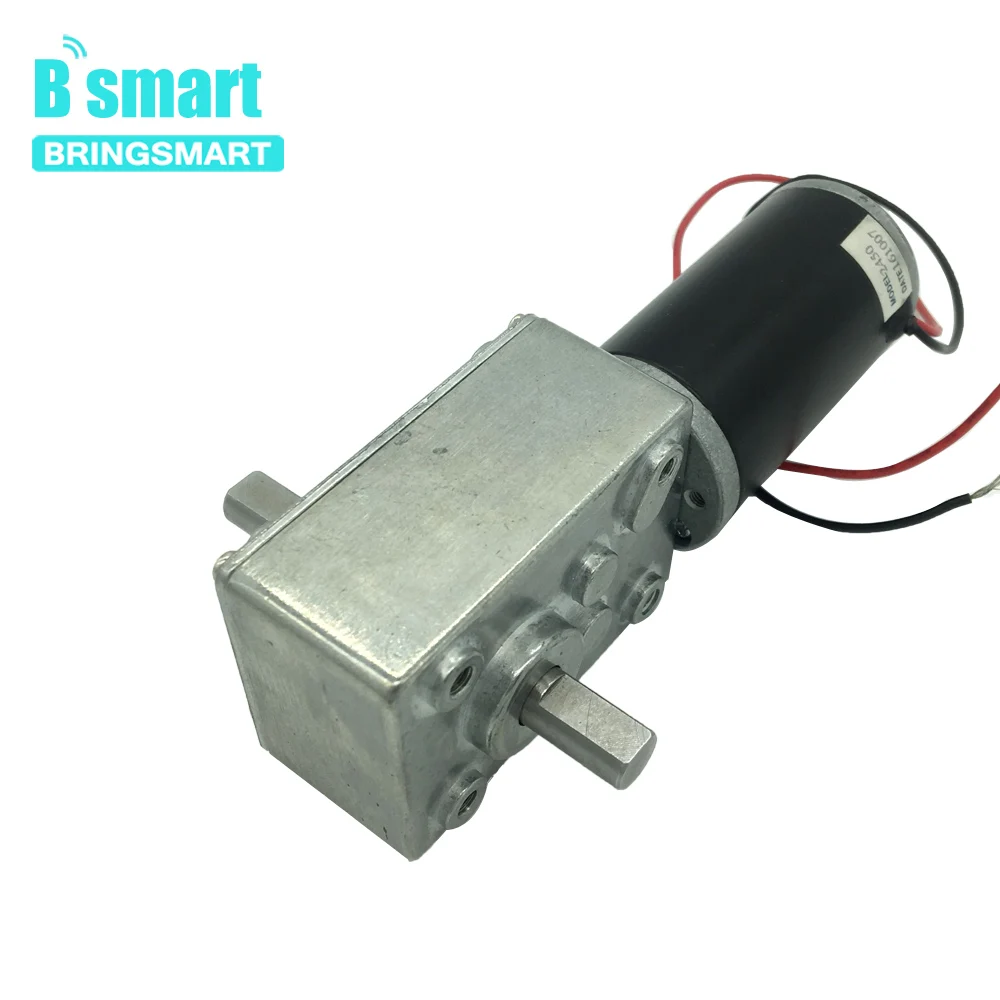

Bringsmart 12V Double Shaft DC Motor Worm Gear High Torque 5-470RPM 24 Volt Motor D Shaft Worm Reducer Reversible Customized

Name: Bringsmart 12V Double Shaft DC Motor Worm Gear High Torque 5-470RPM 24 Volt Motor D Shaft Worm Reducer Reversible Customized
SKU: 2251832763300552
Availability: InStock

$34.83 – $104.55

Speed(RPM)

Voltage(V)

Gear Count

Clear

SKU: 2251832763300552 Category: Worm gear

Description
Reviews (0)

Hign-concerned Chemical: None
Torque: 3.4-70kg.cm
Usage: Home Appliance
Model Number: A58SW31ZYS
Continuous Current(A): 0.6-1.6A rated
Construction: Permanent Magnet
Type: Gear Motor
Protect Feature: Totally Enclosed
Commutation: Brush
Brand Name: BRINGSMART
Efficiency: IE 1
Output Power: 2.5-11.7W
Origin: Mainland China
Certification: CCC,ce,ROHS
Bringsmart Model: A58SW31ZYS
Customized Support: Customizable

1. Consignee

Please use a Full Name as the consignee, or cargo can’t reach to you. Especially in Russian Federation. Thanks for understand.

All products were checked well before delivering, please placing order without concern.

2. Delivery

Usually we send out your order in 2-6 days after payment.

we promise to refund or resend if you don’t get parcel, but pls give also patience of waiting the parcel during the delivery date, for the parcel still on the way to you.

Any problem pls just contact us first.

If you are satisfied with our products and services, please give them a good review. If you have any questions, please contact us. Your five-star rating is the best encouragement for us. We look forward to your feedback.

Solution:

Question 1: why still not receive my order?

Answer 1: sometime, some cargo would be slightly delay on road. Please contact with us first, we will offer a good solution for you.

Question 2: how to change rotation direction?

Answer 2: please change wiring polarity to change rotation direction.

Question 3: how to change speed?

Answer 3: you can buy our below speed controller, to change speed from 0-10rpm.

Question 4: what do ;self locking; mean?

Answer 4: It is the feature of this motor, when power off, this motor also has lock torque, can not easy to move by other force. It can be used for some special purpose. Such as Anti-theft sliding doors.

Question 5: do you have other motor with other parameter?

Answer 5: yes, we are factory of motors, please contact with us.

Question 6: What is the load speed and what is the no-load speed?

Answer 6: The speed at which the motor has no load weight is the no-load speed. If the motor rotates to drive the weight, the speed is the load speed.

Question 7: What is the meaning of PackageA PackageB?

Answer 7: If you order PackageA, you will receive a motor as shown in the picture ;PackageA;. If you order PackageB, you will receive a motor and a bracket as shown in the ;PackageB; picture. We show what you will receive in the package image.

Question 8: What happens when a voltage of 18V is connected to a 12V motor or a 18V motor?

Answer 8: The 12V motor connection 18V voltage will be broken, and the 24V motor connection 18V voltage will affect its speed and torque, and will not even run.

Feature: High torque, self-lock, double shaft, D type shaft.

Motor support Reversed running and has more noise when reversed running than normal running,

this is a normal phenomenon, please know before buying.

===================================================================================

How to choose the product you need ?

(1) 12v 12rpm+Package A, you will receive 1 piece of the motor(12v 12rpm)

(2) 12v 12rpm+Package B, you will receive 1 piece of the motor(12v 12rpm) +Mounting bracket

(3) 12v 12rpm+Package D, you will receive 1 piece of the motor(12v 12rpm)+Speed controller,speed controller function: you can adjust the speed and rotaion of the motor, If you buy our controller, and choose 12 rpm speed, so can adjust speed from 0rpm to 12 rpm

(4) 12v 12rpm+Package J, you will receive 1 piece of the motor(12v 12rpm) + Mounting bracket + Speed controller

(5)12v 12rpm+Package R, you will receive 1 piece of the motor(12v 12rpm) + Mounting bracket + Speed controller + Voltage transformer, transformer: can transfer AC 220V to DC12V/24V.
