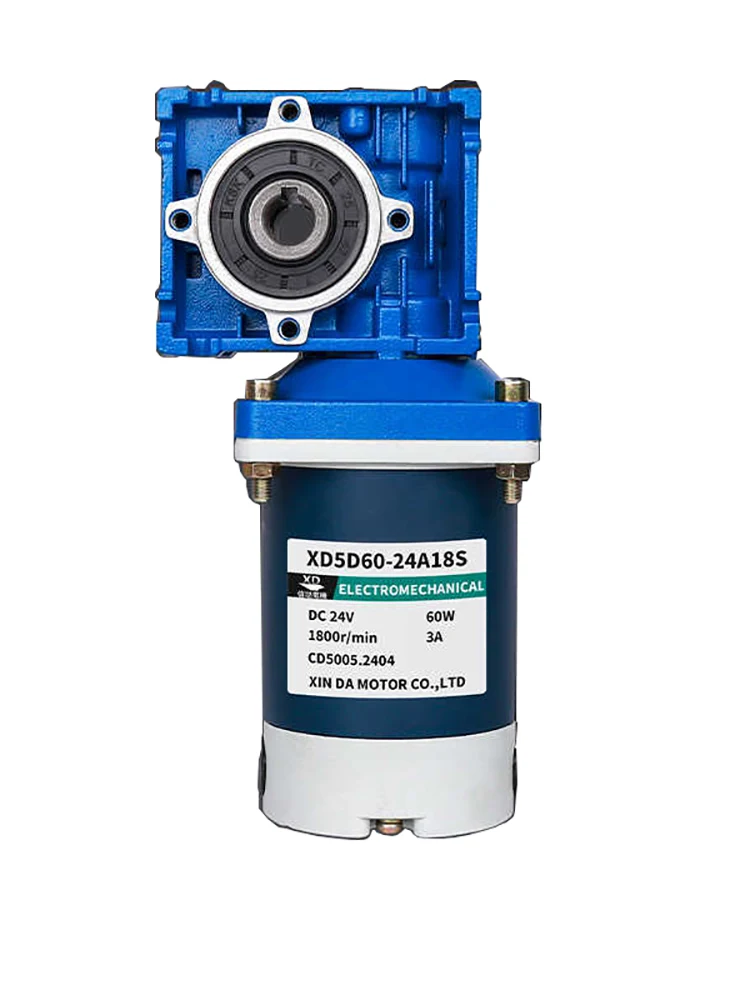

12V 24V 60W NMRV40 DC Worm Gear Motor with Single Output Shaft RV40 Adjustable-speed CW CCW High Torque

Model: 5D60GN-RV40

No-load speed of the motor2100rpm, load speed of the motor1800rpm.

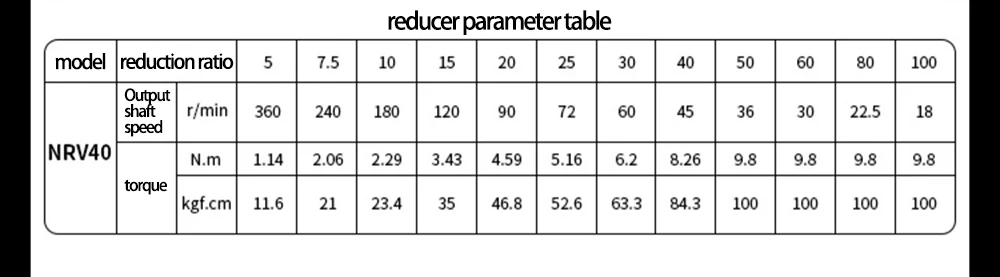

No load output speed:speed ratio 5:1(420rpm), speed ratio 7.5:1(280rpm), speed ratio 10:1(210rpm), speed ratio 15:1(140rpm), speed ratio 20:1(105rpm), speed ratio 25:1(84rpm), speed ratio 30:1(70rpm), speed ratio 40:1(52.5rpm), speed ratio 50:1(42rpm), speed ratio 60:1(35rpm), speed ratio 80:1(26rpm),speed ratio 100:1(21rpm)

Features:

1，can CW and CCW, with a governor can adjust the speed

2, the turbo reducer using high-quality aluminum alloy pressed, the unique shape , wipe with metal gear running smoothly, ultra-quiet, durable.

3, fixed part of the use of pure copper, high-quality materials with precision winding technology power instantly prompted 30%, high temperature, stable performance.

4, strong magnets to form a strong magnetic field, so that the motor torque increases

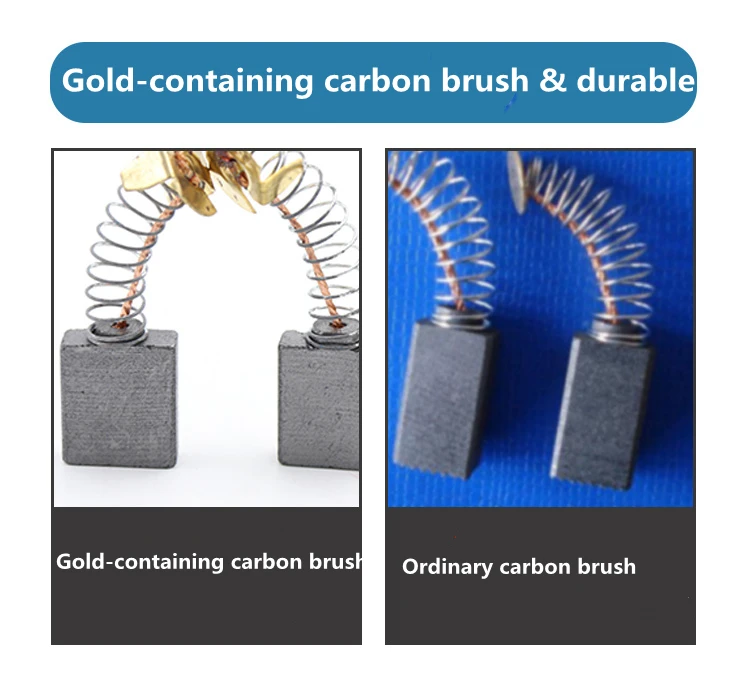

5, gold brush

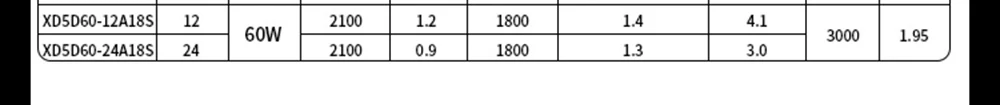

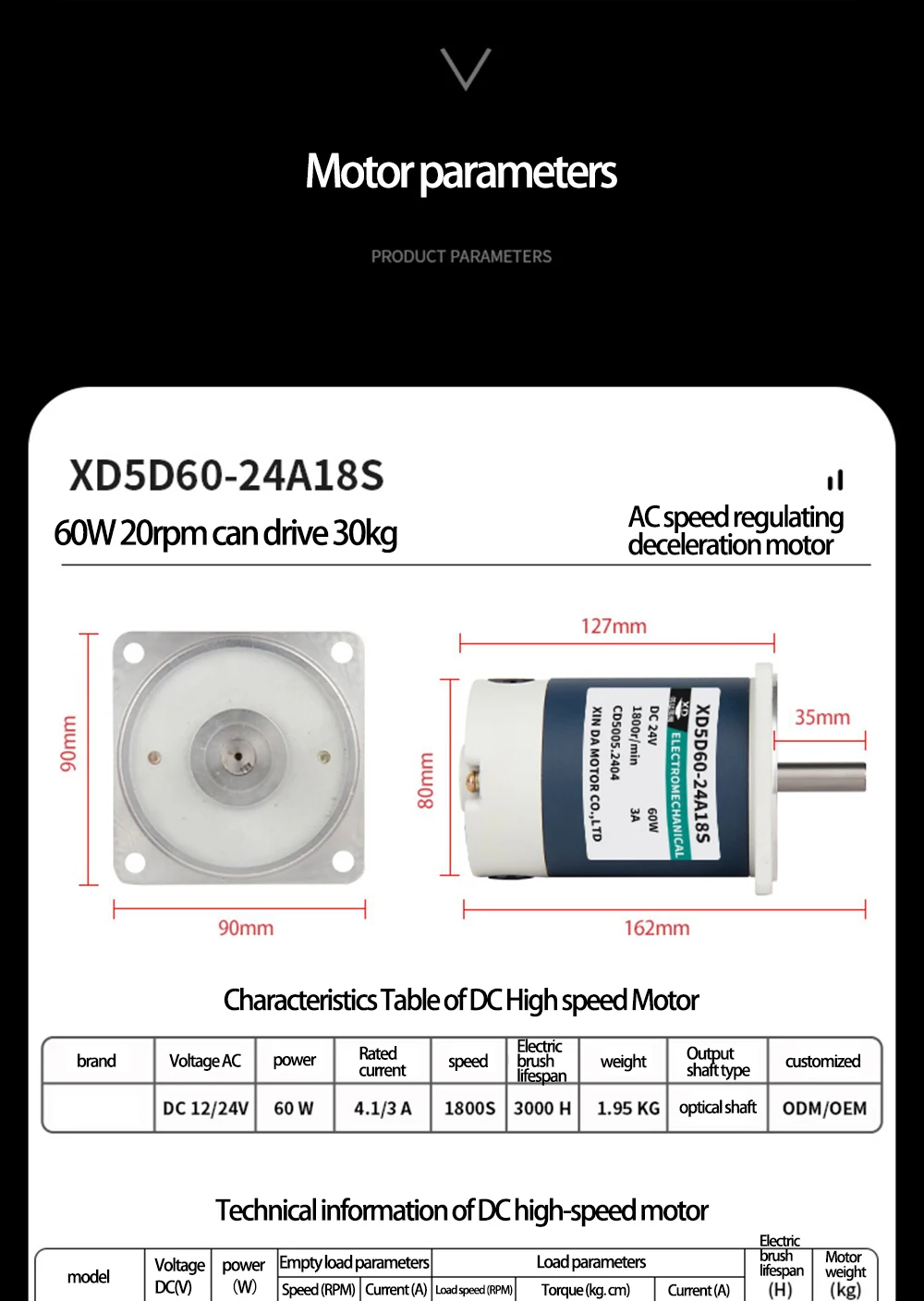

Specification data of 60w NMRV40 worm DC motor:

Model: XD-5D60GN-RV40

Voltage: 12V/24 V

Power: 60 W

Current: 12V 4.1A/24V 3A

Output shaft model: single output / dual output

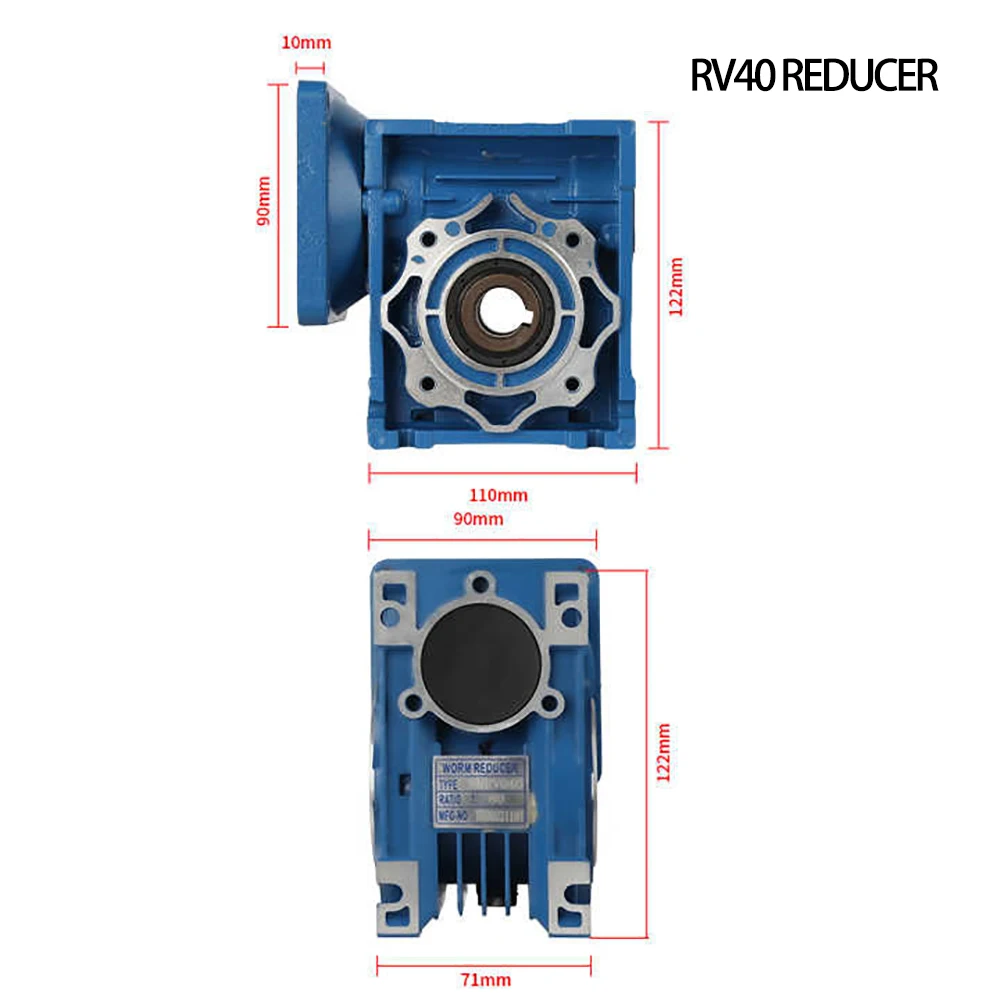

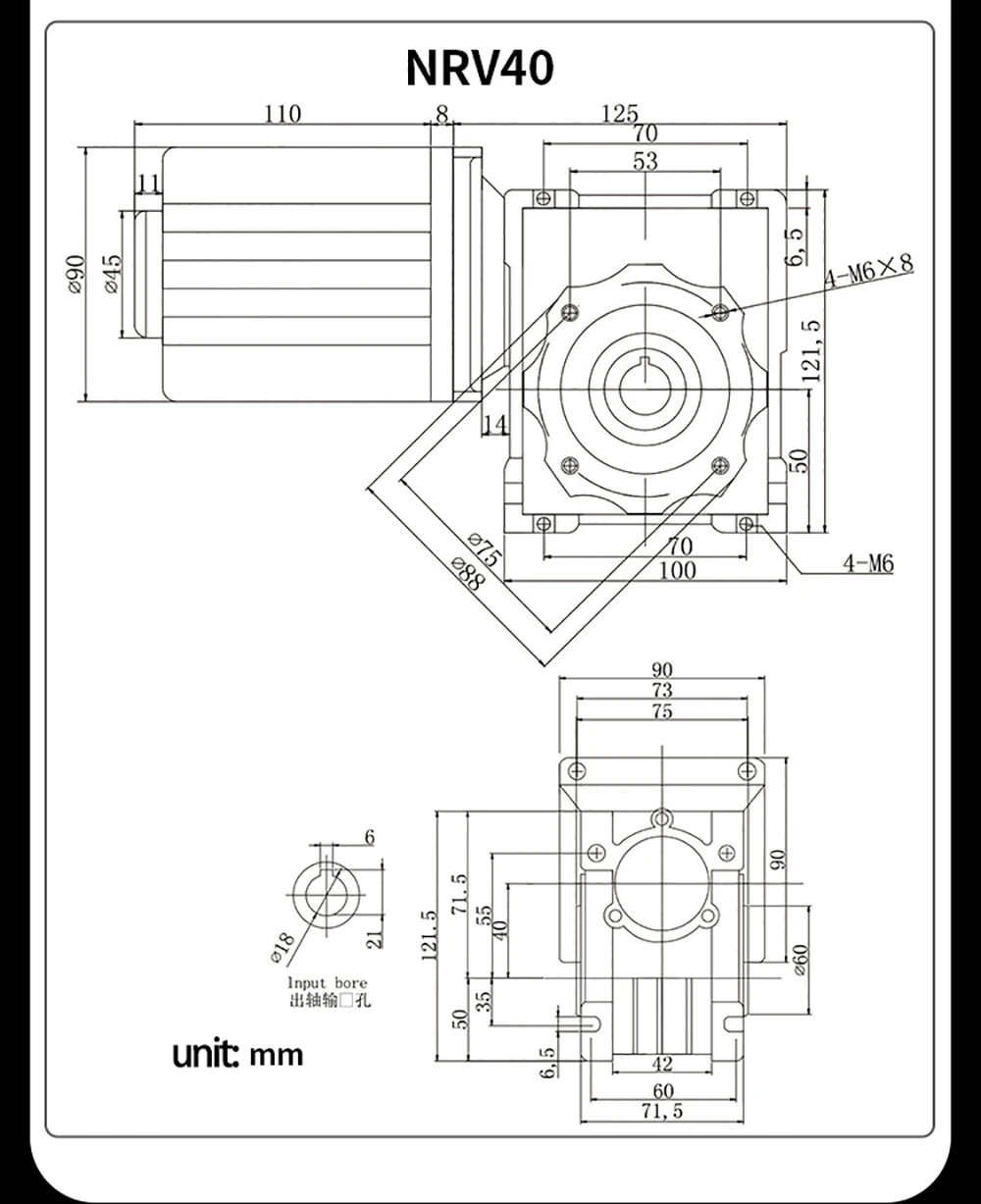

Shaft diameter: motor: 12mm, worm reducer: 18mm.

Rotation: could be changed, CW / CCW.



Note!

This motor is a single shaft motor, if you need a dual shaftmotor,please click the link below to purchase!

12V 24V 60W NMRV40 DC Worm Gear Motor with Dual Output Shaft RV40 with Self-locking Adjustable-speed CW CCW High Torque – AliExpress 13

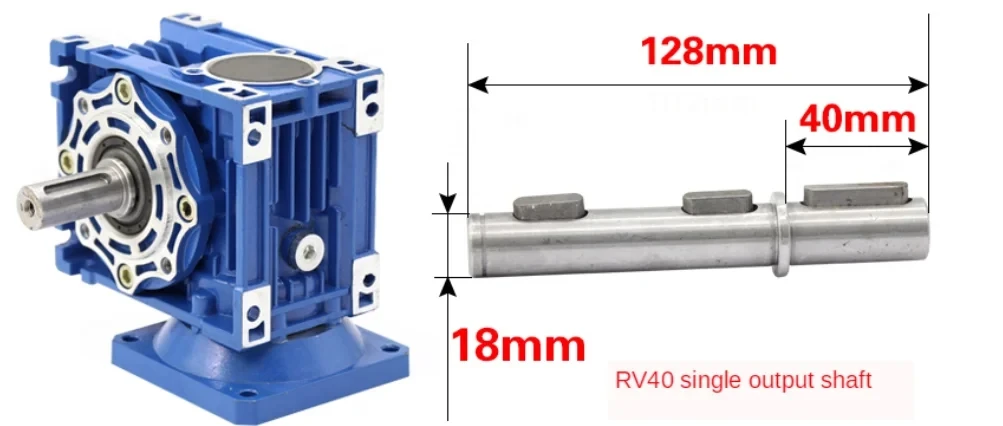

(motor+reducer)*1set+ single output shaft*1pc

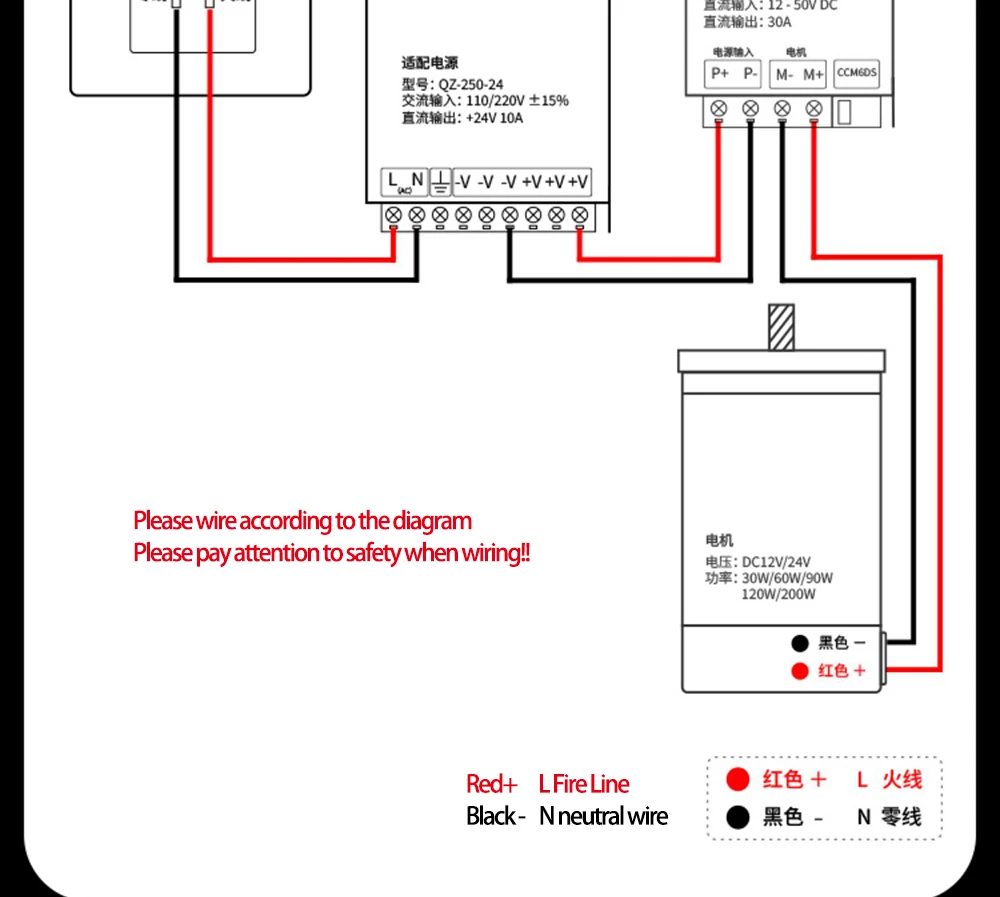

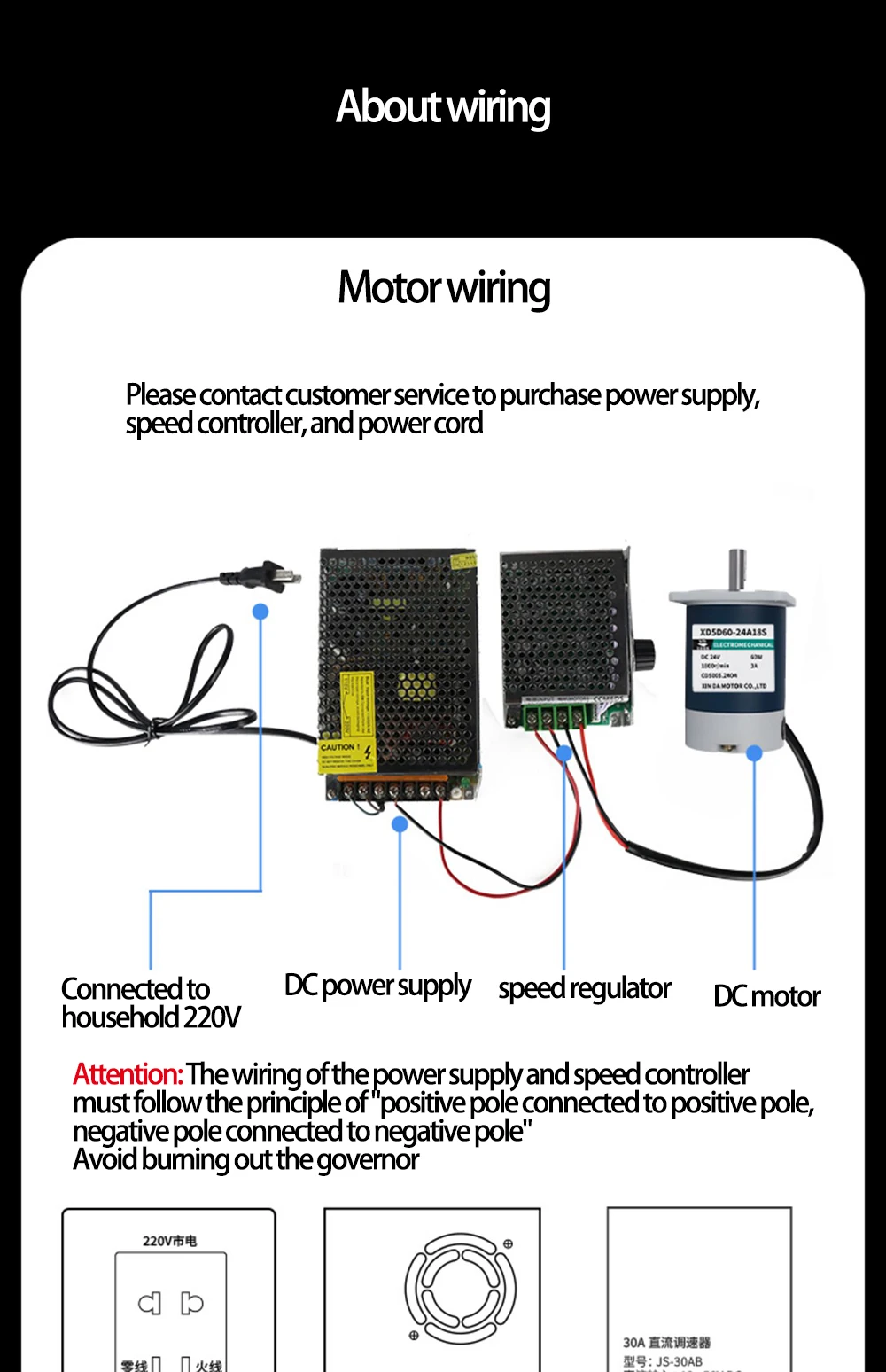

If you need a matching speed regulator and matching power supply, please click the link below to buy it.

package:

In order to avoid damage to the DC turbine geared motor during transportation, we will separate the motor from the reducer when it is shipped. Please see the following illustration:

Attention: This image is for customer reference only, and the parameters on the product image are not the product parameters of this link.
