- Hign-concerned Chemical: None
- Torque: 2.14-25.3 N.m
- Model Number: XD-5D120GN-RV30
- Continuous Current(A): 12V 13A/24V 6.5A
- Construction: Permanent Magnet
- Type: Gear Motor
- Protect Feature: Totally Enclosed
- Commutation: Brush
- Efficiency: IE 2
- Output Power: 120W
- Origin: Mainland China
- Certification: CCC,ce
- Speed ratio: 5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1
- No-load speed: 2200rpm
- Load speed: 1800rpm
- Output speed: 27rpm-420rpm
12V 24V 120W NMRV30 DC Worm Gear Motor with Single Output Shaft RV30 Speed Adjustable CW CCW High Torque

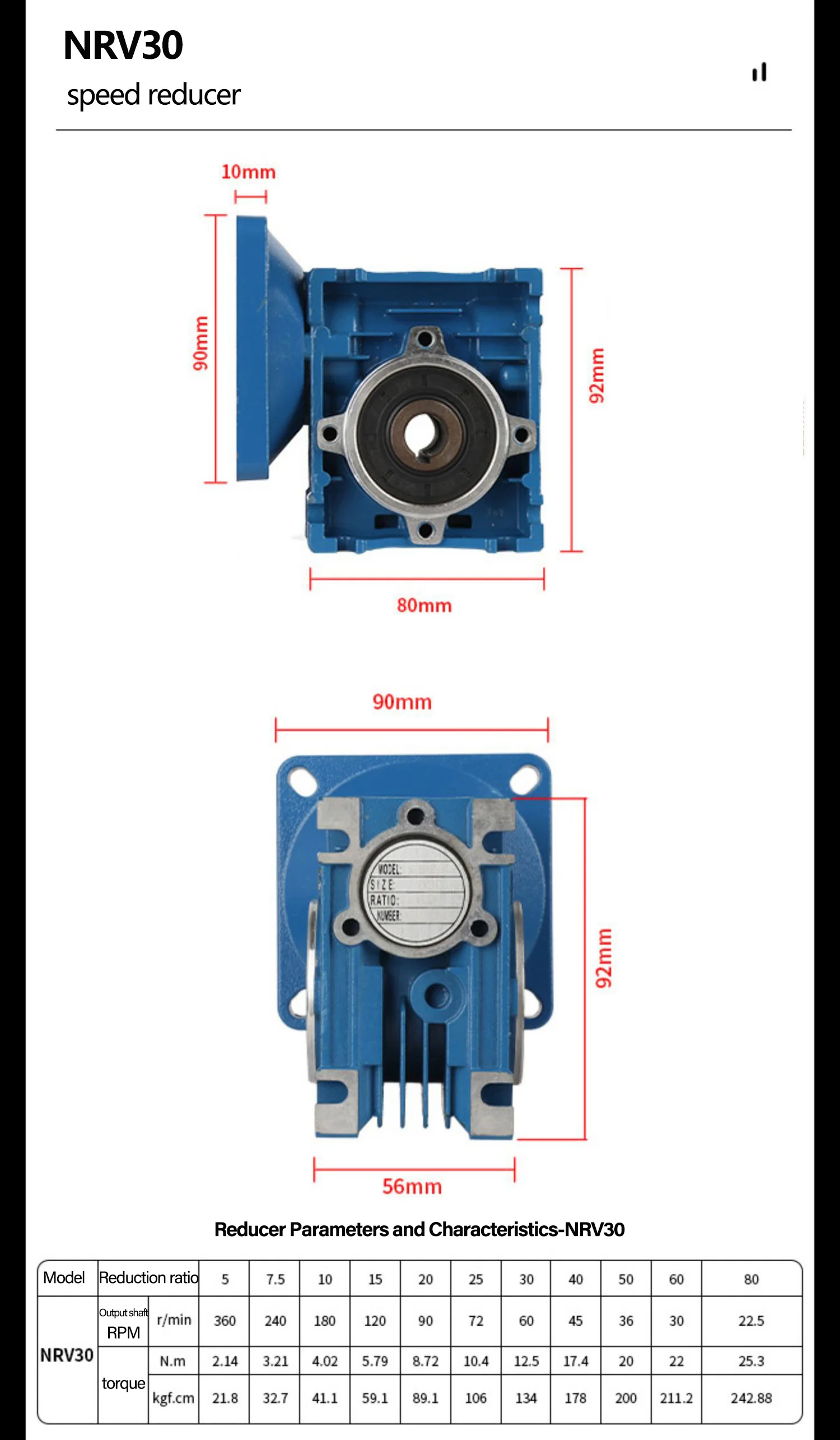

worm reducer speed ratio: 5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,80:1.
No-load speed of the motor 2100rpm, load speed of the motor 1800rpm.
Output speed:speed ratio 5:1(420rpm), speed ratio 7.5:1(280rpm), speed ratio 10:1(210rpm), speed ratio 15:1(140rpm), speed ratio 20:1(105rpm), speed ratio 25:1(84rpm), speed ratio 30:1(70rpm), speed ratio 40:1(52.5rpm), speed ratio 50:1(42rpm), speed ratio 60:1(35rpm), speed ratio 80:1(26rpm).
This motor is a single shaft motor, if you need a dual shaft motor,please click the link below to purchase!
https://vi.aliexpress.com/item/1005008295381724.html
(motor+reducer)*1set+ single output shaft*1pc
package:
