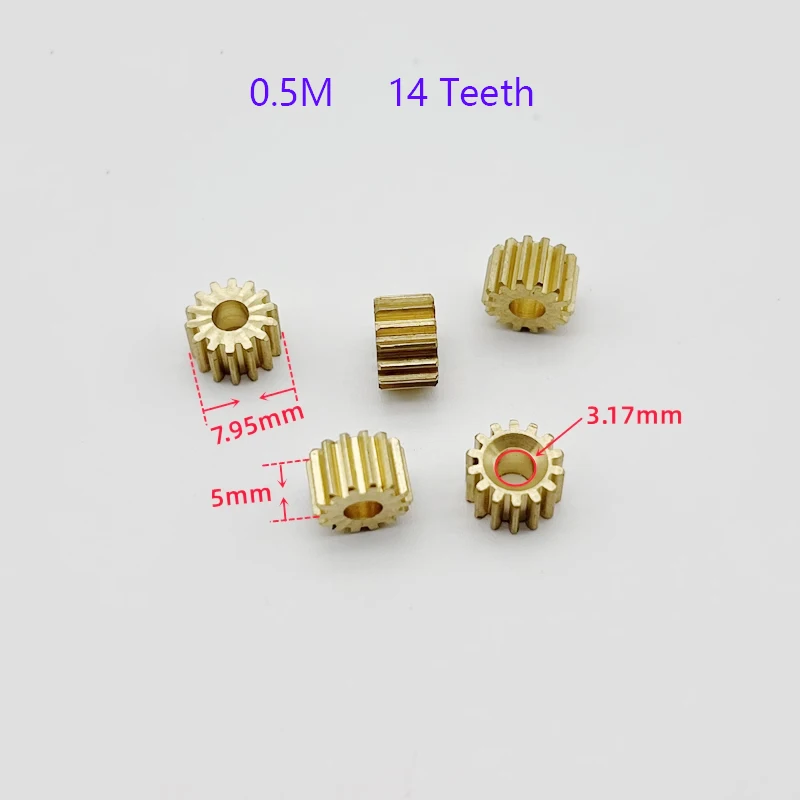

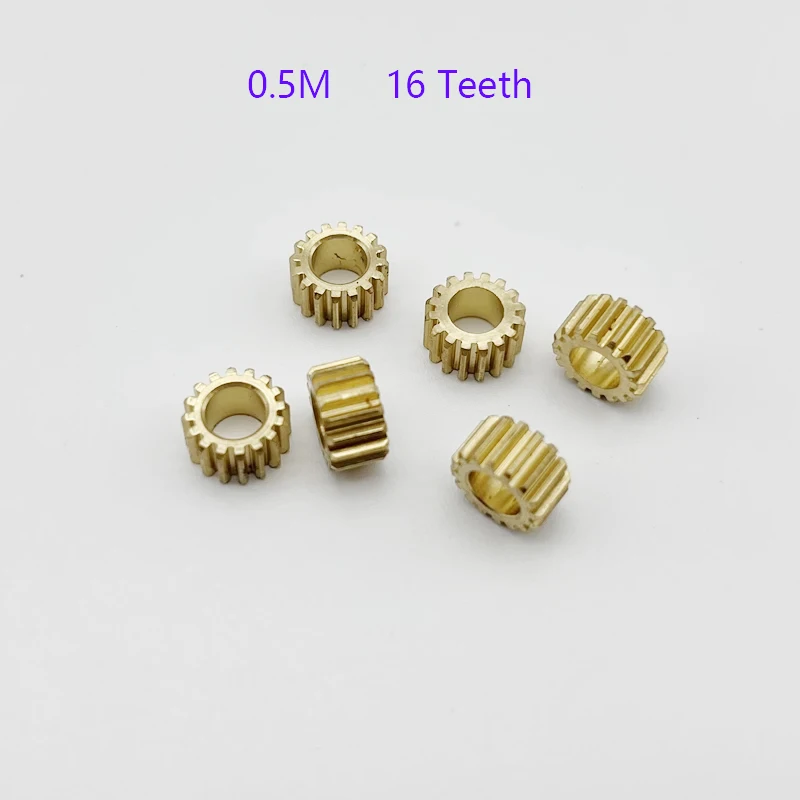

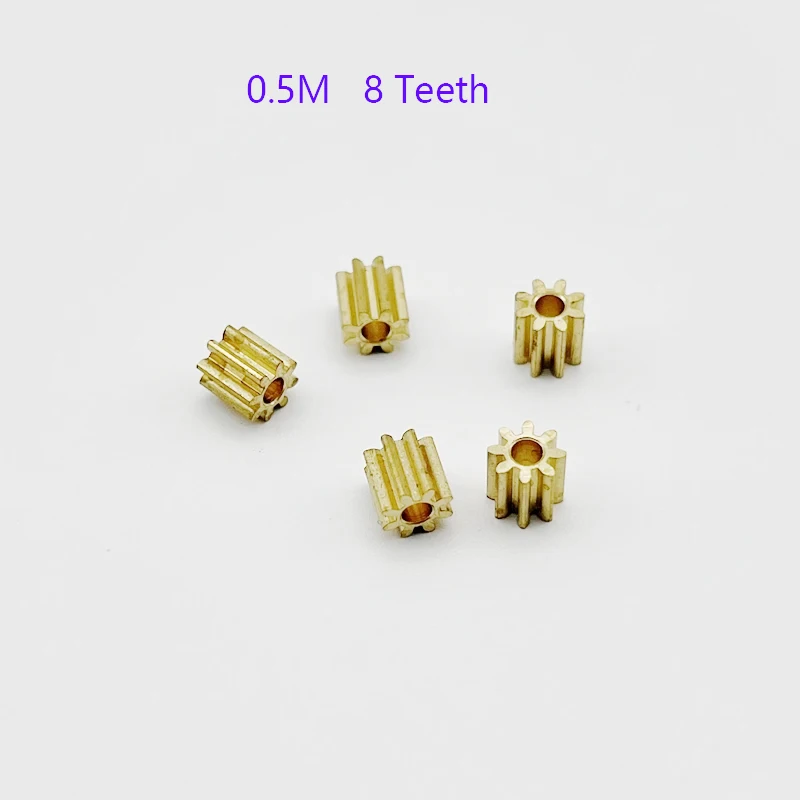

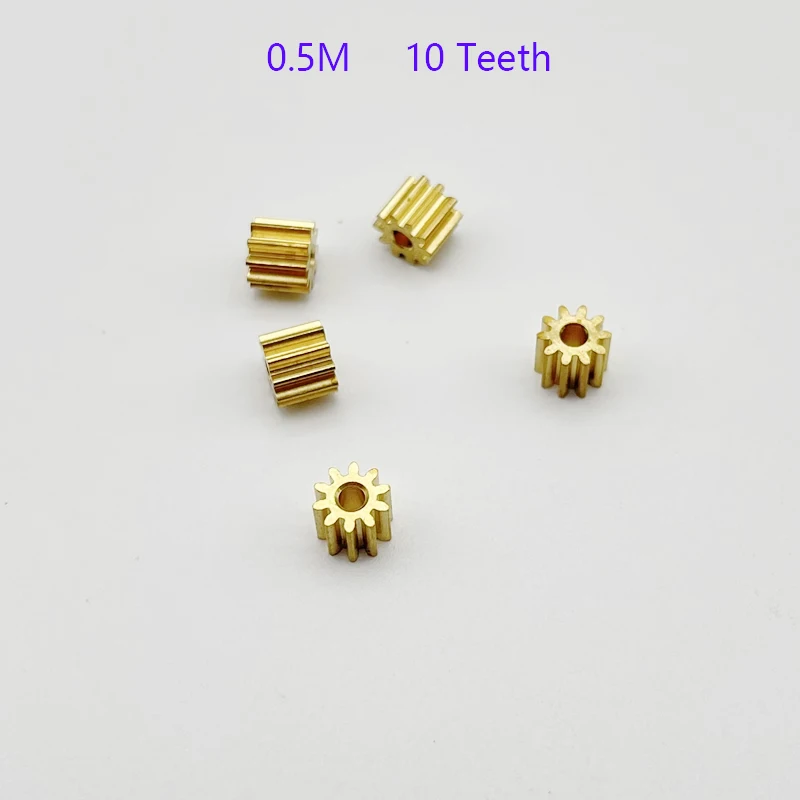

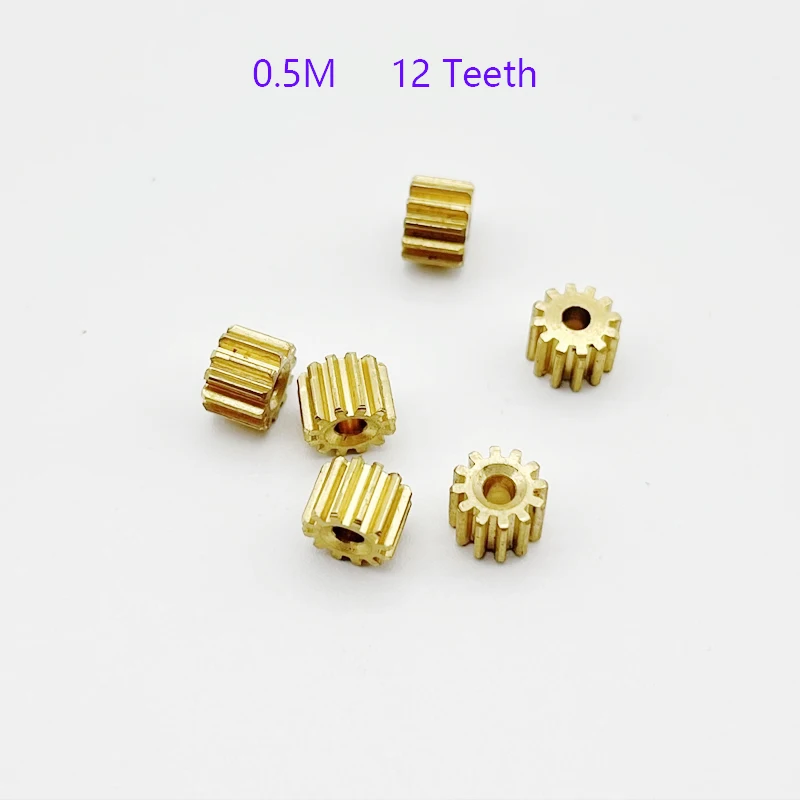

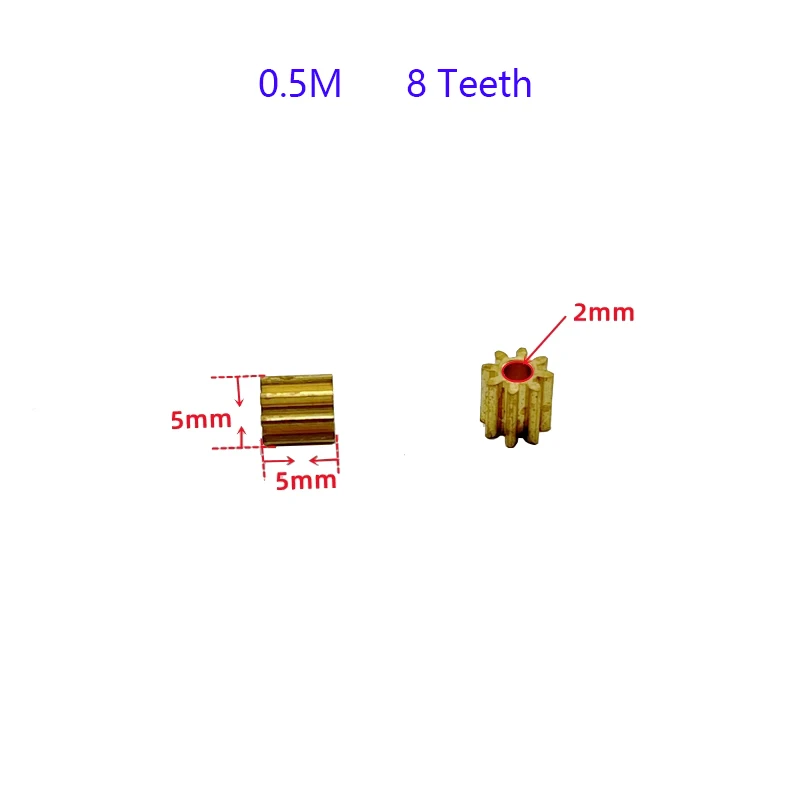

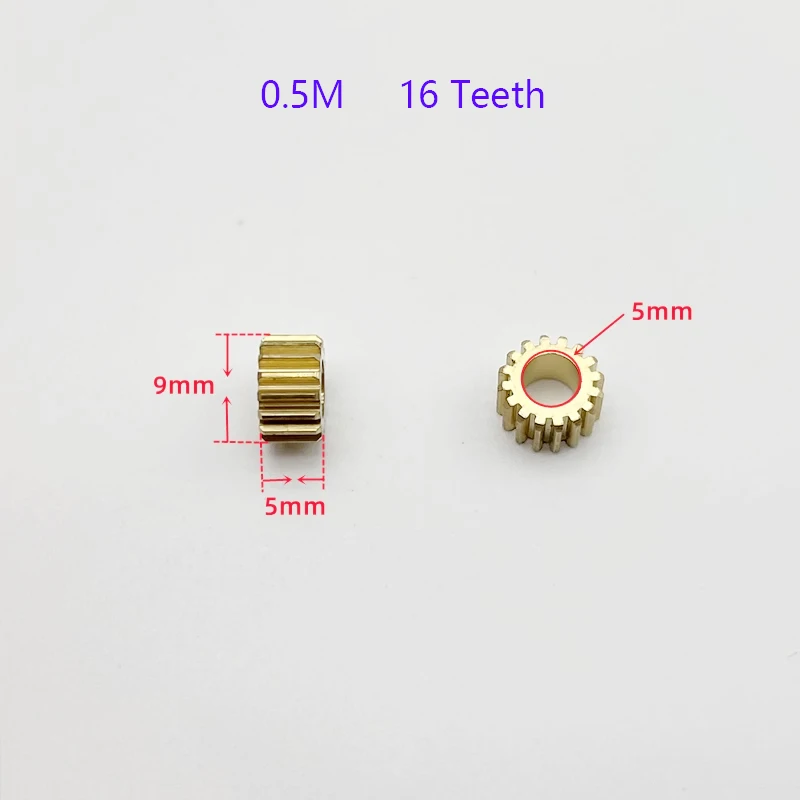

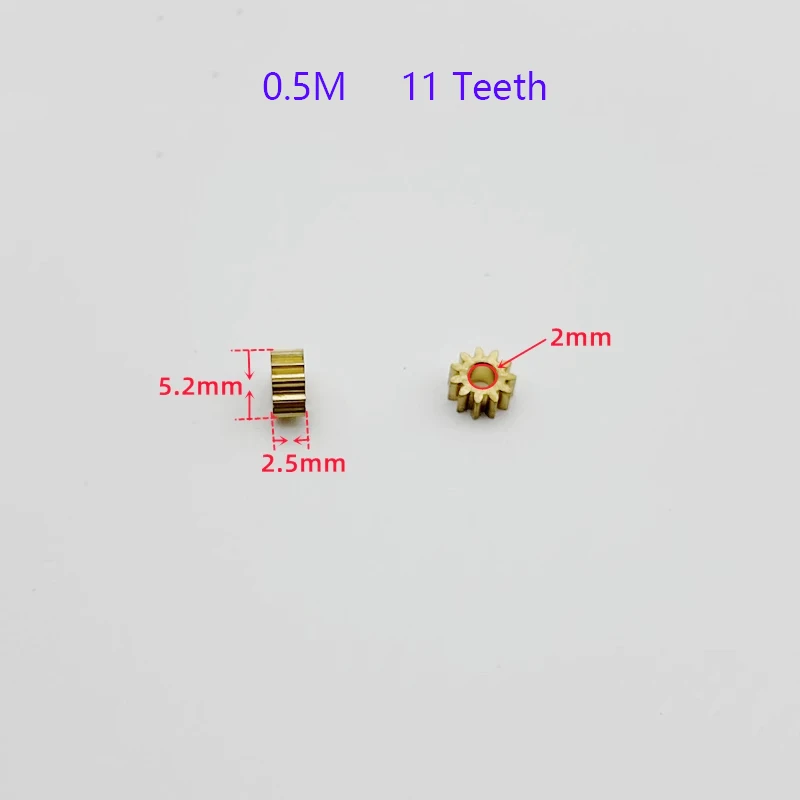

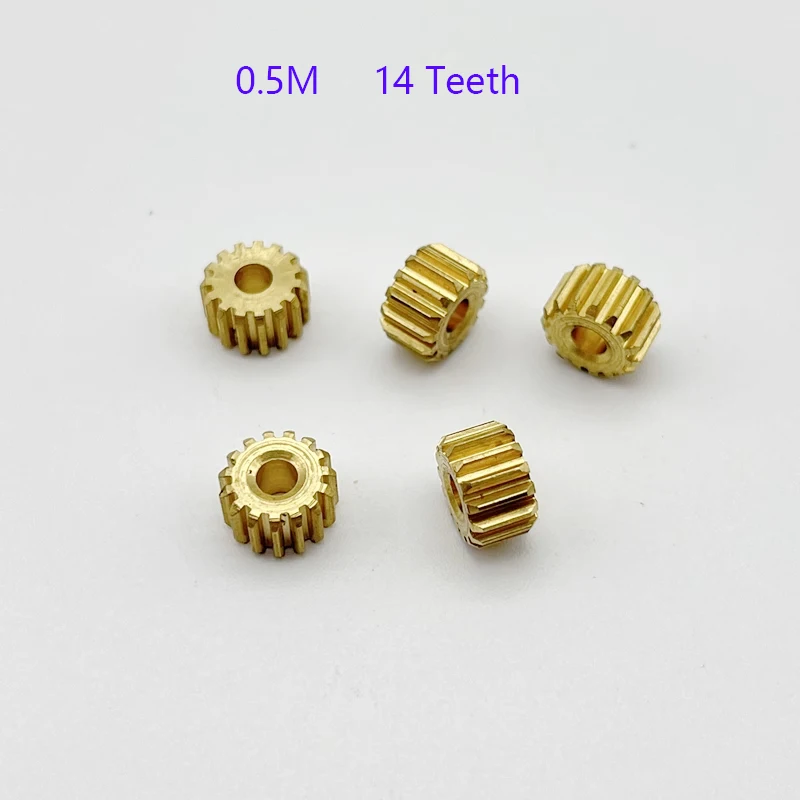

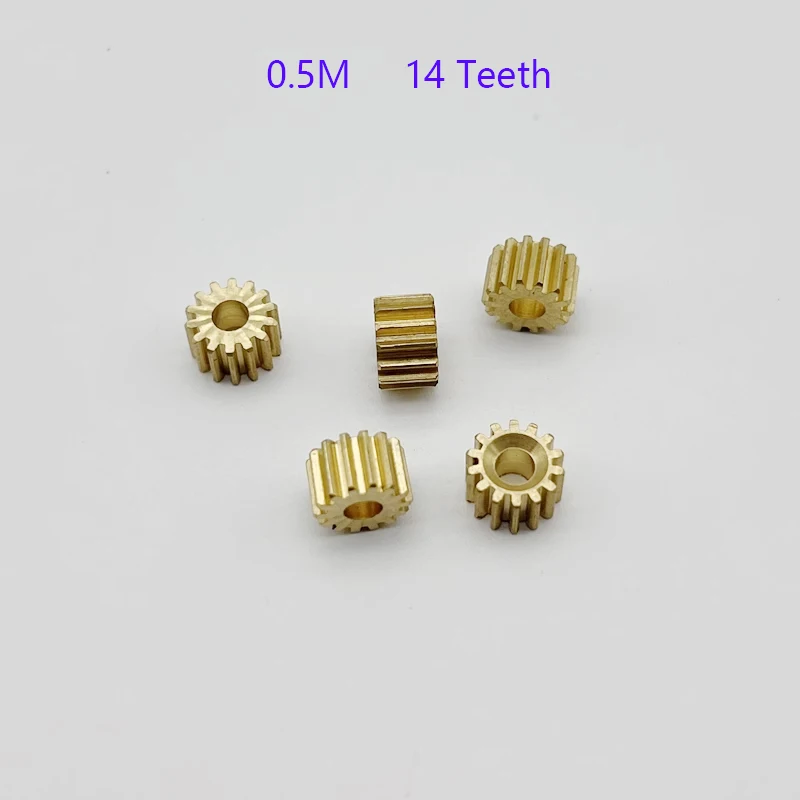

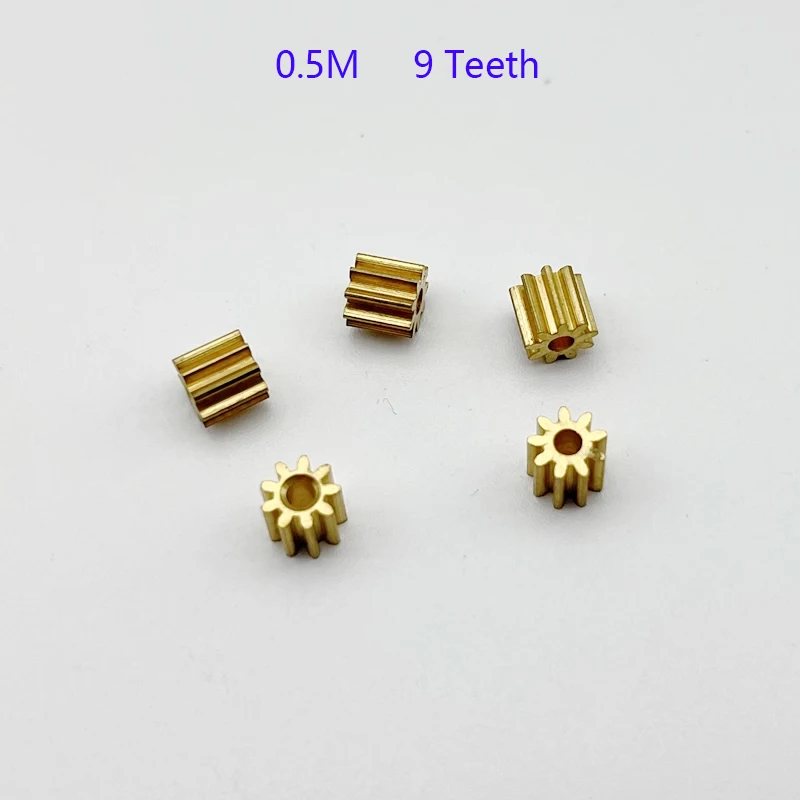

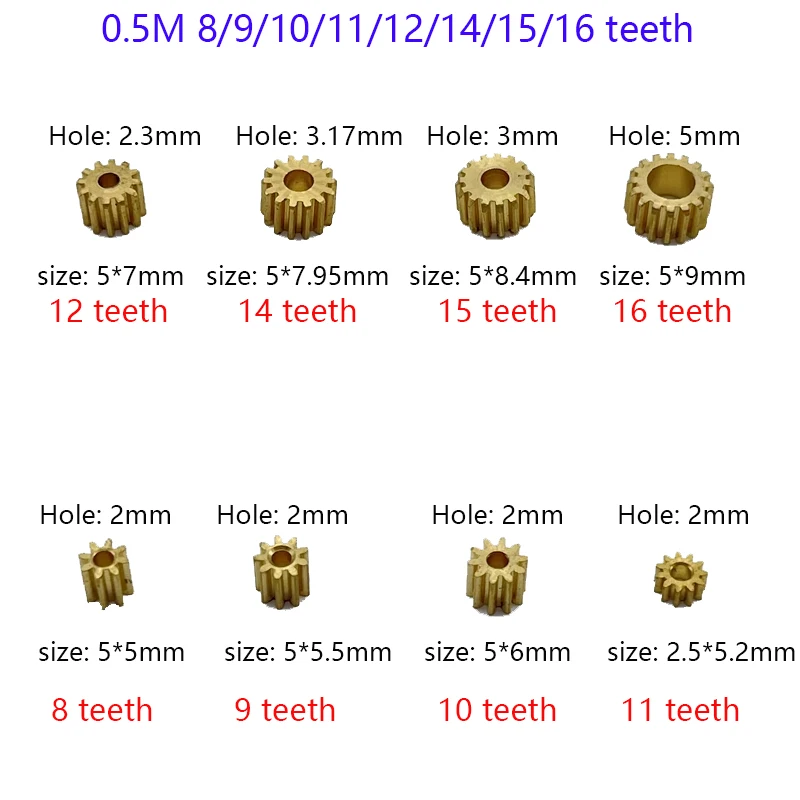

0.5M Modulus Motor Brass Gear 8/9/10/11/12/14/15/16 Teeth Metal Gear Fit 2mm 2.3mm 3mm 5mm Shaft for 130/380/555/775 motor

Name: 0.5M Modulus Motor Brass Gear 8/9/10/11/12/14/15/16 Teeth Metal Gear Fit 2mm 2.3mm 3mm 5mm Shaft for 130/380/555/775 motor
SKU: 3256806645124787
Availability: InStock

$2.10 – $14.40

Number of Teeth

Hole Diameter

Clear

SKU: 3256806645124787 Category: Industrial equipment gear

Description
Reviews (0)

Standard or Nonstandard: Standard
Processing: Precision Casting
Model Number: 0.5M Brass Gear
Shape: Cylindrical Gear
Tooth Profile: Spur Gear
Material: Copper
Origin: Mainland China

How to calculate the outer diameter of gear :
Gear Diameter = (number of teeth + 2) * Modulus
For example(0.5Modulus, 10T): Gear diameter= (10+2)*0.5=6mm
—————————————–
How to calculate the modulus of gear :
Modulus= Gear Diameter/(number of teeth + 2)
For example(6mm Outer Diameter, 10T): Modulus= 6/(10+2)=0.5

Material: Brass
